A simple SWR analyzer with ili9341tft and ad9850 DDS

A simple antenna analyzer is a helpful gadget which will tell us about the frequencies to which a piece of wire will resonate on. This is very useful in conjunction with a simple tuner to adjust the antenna for an optimum VSWR (voltage standing waves ratio). Usually, a good commercial antenna analyzer is an expensive device which we use once in a while. Here is a simple project which will give a rough estimation of VSWR and resonant frequencies of a random piece of wires, antennas and lc networks. For the critical reader, there is a lot of limitations within this simple design and can read more about various possibilities here (keywords: harmonics, directional coupler, superheterodyne).

This project uses a simple ad9850 module as its heart to generate the rf signals for the sweep. The controller is an Arduino pro mini (with an atmega328 running on 3.3volt) and for display, it uses an ili9341 tft.

The core circuitry for the analyzer is very simple and is based on the design from Beriks (K6BEZ) simple antenna analyzer (pdf). I added a buffer with the DDS generator (as shown on W5DOR).

To control the whole circuitry, I added an IR receiver which is useful for inputting frequencies, setting up the scan, span, etc. (basics on ir library). There is an updated version which uses a rotary encoder at the bottom of the page [Rotary Encoder]

So currently the firmware supports three things, a simple DDS VFO, a VSWR plot with a sweep from 1-30mhz and can be adjusted to smaller regions for e.g 7.000MHZ to 7.500 MHZ.

VSWR plot from Arduino antenna analyzer on an ili9341tft

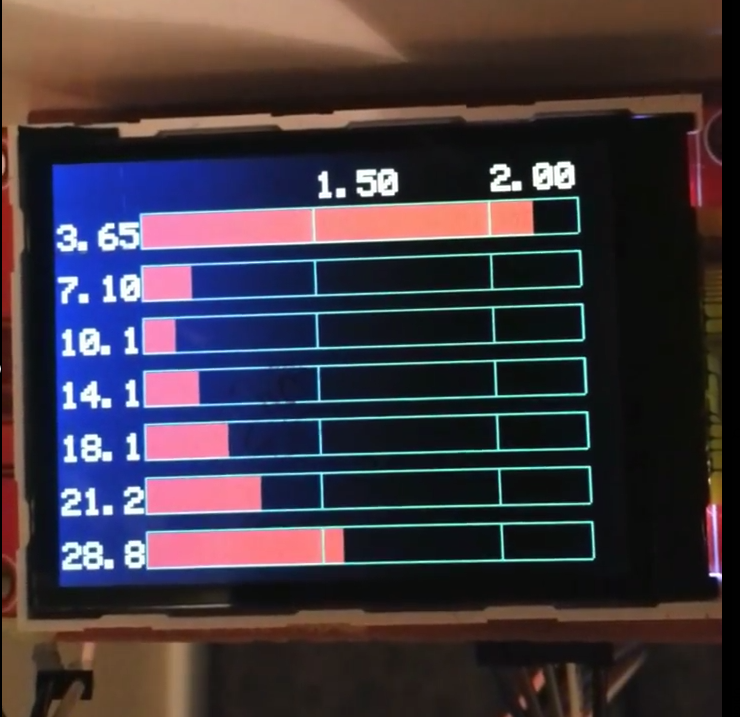

There is a quick band scanner which scans all amateur radio bands and locates the best band which suits the antenna.

Scanning the bands

Simple dds function can be used to act as a signal generator for testing

Arduino DDS menu

Other future possibilities are to generate wspr signals. The circuitry is modular so that boards can be swapped to add extra functions and hence reusing the dds and TFT display.

Here is a simple video of the analyzer connected to a parallel lc circuit with a 50ohm carbon resistor to use it as a simple scalar network analyzer (filter around 7mhz)

Here is some more pictures to show the constructions

DDS and controller together with display

buffer, opamp, and detectors

building blocks

PC interface

Componets/modules

Finished assembly

Firmware is still basic and needs improvements. It can be downloaded from github. If you are building, the best way is to start in different stages as it involves several libraries. I would recommend the following sequence. It is a bit difficult for a beginner to get all this running at the first place. I will update a better writing at a later point with a compiled firmware so that it will be easier for a less experienced one to build it and calibrate.

Get the Arduino and LCD communicate and display the basic test patterns. See this post on getting the ili9341 up and running. It basically uses a simple library for drawing on the TFT and I modified it a bit to get the correct display orientation (So use the ili9341 library here)
Test the ad9850 module and the Arduino to work together: See this post.
Now get the Timed action, Infrared Remote and ad9850 libraries.
Assemble the SWR bridge board with buffer and adjust the potentiometer on the forward power to get a voltage output in the ADC range (0-3.3v). Set the DDS module to a fixed frequency and do the measurements (for e.g set 10mhz ) and do the same with a sweep. You could use the k6bez antenna analyzer script to test it first, which has the necessary functions to test and calibrate the circuit. See the link in the reference below (Note: adjust the sketch to match the pins (2,7,9,8)of your DDS module)
Upload the script and open a serial console. Keep pressing a remote control (any make) and assign the keys to different function by copying the number shown for specific buttons to the relevant areas in the sketch.

A quick and dirty schematic (hand drawn) is attached below. It is basically derived from reference [1] and [3]. The construction used some simple pro-typing boards. RF sections could be better constructed on a copper clad in Manhattan style. Here I used a simple stripboard and attached a ground plane with a conductive tape (separated by a plastic film).

Crude Schematic for the analyzer. This is my first version and used an IR remote. The code is at https://raw.githubusercontent.com/riyas-org/swranalyser/master/antenna_light_tft/antenna_light_tft.ino
ALWAYS FOLLOW THE PIN NUMBER USED IN THE SKETCH as there are some typos and errors.

Rotary Encoder

Here is a simple version of the VSWR analyzer using a rotary encoder with a click. The connection is simple. Connect the center pin and one side of the click (button) to the ground. The other end of the click switch is connected to A0 pin and a library is used to detect single and double clicks (Onebutton). The other two pins on the encoder (of the three) are connected to pin 2 and 3 of the Arduino (interrupt). There is a slight change in the wiring for ad9850 DDS module which is connected to pin 9,8,7 and 10. Backlight on the TFT is directly connected to 3.3v via a current limiting resistor.

See this post for testing rotary and TFT - Adding Rotary encoder to arduino projects- quick start

Connections

Attached a simple hand drawn block schematic for several modules. The VSWR bridge circuitry is same as k6bez. Alternatively, an ad8307 based rf sense circuitry can be used. Ensure that the output of the rf sense is adjusted to fall within the ADC range (here 0-3.3v). A 5v design needs a level shifter for the TFT module.

Block schematic for the standalone analyzer with rotary encoder and Bluetooth serial (click to enlarge) Always double check the wiring as sometimes errors creep in. See the comments in the Arduino sketch to get an idea on which pin gets connected

Additional Notes:

1) If running with a pro-mini on 3.3 volts, make sure that the fwd and rev voltages from detector fall wit in the ADC range (0-3.3volt)

2) Buffer amplifier design is actually for 12 volts. I was running it at 5.5 volts (make sure it is 5.5 with a multimeter, do not trust the wall wart) and got good results. To test it, add a 100-ohm resistor to the antenna port and run the analyzer to get a flat line. If the SWR rolled up at the higher frequencies, it means the buffer is not working well. An alternative is to replace 1k resistors with 220 ohms and the emitter resistor (470)with 220 for lower voltage. Also, add a rf choke to the buffer power supply with a 0.1 cap to decouple.

3) An alternative solution is to run the pro mini at 5 volts and will give a wider ADC (0-5v) at the cost of a level shifter.

4) Use a directional coupler to replace the resistive bridge. Use an ad8307 log detector.

5) Adding a superheterodyne detector to get rid of harmonics and drive the mixer using a multiple clock generator (e.g Si5351) and use other channels to feed the sweeper/buffer.

Effect of inadequate power supply to buffer

A few more pictures of the prototype in an earbud case :)

Hex File for atmega328 (Download)

Source Code (Download)

/*
A simple vswr analyser using atmega328, a resistive bridge and a diode detector
Compared to my previous one, this is modified to support a rotory encoder
Usage: Single click on the encoder: Move across menu
Double click will select
Rotation is used to change the values
More: http://blog.riyas.org
*/
#include <stdint.h>
#include <TFTv2.h> //https://github.com/riyas-org/ili9341
#include <SPI.h>
#include <avr/eeprom.h>
#include <AH_AD9850.h> //http://www.arduino-projekte.de/index.php?n=7
#include <OneButton.h> //https://github.com/riyas-org/OneButton
#include <Rotary.h> //https://github.com/riyas-org/Rotary
#define SWR_STEP 64 //set it high for more points in the plot

Rotary r = Rotary(3, 2); // Encoder connected to interrupt pins 2 and 3 on arduino promini (atmega328)
OneButton button(A0,true);// Click button on the encoder the other end is connected to ground
AH_AD9850 AD9850(9, 8, 7, 10); //AH_AD9850(int CLK, int FQUP, int BitData, int RESET);

// Pins for Fwd/Rev detectors
const int REV_ANALOG_PIN = A2;
const int FWD_ANALOG_PIN = A1;
//const int EXTRA_ANALOG_PIN = A3; // an extra detector for rf power

const byte lcdW = 320 ;
const byte lcdH = 240 ;
const byte fontWidth = 10 ;
const byte fontHeigth = 30 ;
const byte totSpan = 9;
float spanValue[totSpan] =
{
    25000.0, 50000.0,100000.0, 250000.0,500000.0, 1000000.0, 2500000.0, 5000000.0,10000000.0
}
;
byte SWR[SWR_STEP];
//byte PWR[SWR_STEP];
float minSwr;
float maxSwr;
uint32_t next_state_sweep = 0;
byte menu_redraw_required = 0;
byte doubleClicked = 0;
byte modSpan = 0;
byte posInput = 0;
byte sign = 0; // negative
float Swr ;
float Pwr ;
struct settings_t
{
    int spanIdx;
    float freqCenter;
}
settings;
//averaged analogue read slow but solid
double analog_read_value(int pin) {
    double total = 0.0;
    double reading;
    int i;
    for (i=0; i< 80; i++) {
        reading = analogReadX(pin);
        total += reading * reading;
    }
    return total / 80.0;
}
double analogReadX(const int pin)
{
    if (pin==FWD_ANALOG_PIN) //in my case forward reading has an offset
    return analogRead(pin);
    else
    return analogRead(pin)-17;
}
void Docalcswr(){
    double FWD=0;
    double REV=0;
    double VSWR;
    // Read the forawrd and reverse voltages
    REV = analog_read_value(REV_ANALOG_PIN);
    FWD = analog_read_value(FWD_ANALOG_PIN);
    if(REV >= FWD){
        // To avoid a divide by zero or negative VSWR then set to max 999
        VSWR = 999;
        } else {
        // Calculate VSWR
        VSWR = (FWD+REV)/(FWD-REV);
        // Rx=(25+REV)/(0.5*FWD-REV-0.5);
        Swr = abs(VSWR);
       // Pwr = sqrt(analog_read_value(EXTRA_ANALOG_PIN));
    }
}
void creaGrid()
{
    byte p0 = lcdH - 2;
    for (int i = 0 ;i < 9; i++)
    {
        Tft.drawVerticalLine((i*40),fontHeigth,164,RED); //240*320
    }
    for (int i = 1 ;i < 2; i++)
    {
        Tft.drawHorizontalLine(0,i*82+fontHeigth,319,RED); //240
    }
    Tft.drawCircle(160,164+fontHeigth,5,GREEN);
    if (settings.freqCenter >9999999)
    Tft.drawFloat(settings.freqCenter/1000000,130,214,2,YELLOW);
    else
    Tft.drawFloat(settings.freqCenter/1000000,130,214,2,YELLOW);
    float s = spanValue[settings.spanIdx]/8;
    for (int i = 0 ;i < 9; i++)
    {
        double freq = (settings.freqCenter + (i-4)*s)/1000000;
        Tft.drawFloat(freq,(i*40),185,1,YELLOW);
    }
    if (spanValue[settings.spanIdx] >9999999)
    Tft.drawFloat(spanValue[settings.spanIdx]/1000000,260,214,2,YELLOW);
    else
    Tft.drawFloat(spanValue[settings.spanIdx]/1000000,260,214,2,YELLOW);
    Tft.drawRectangle(0,fontHeigth,320,164, GREEN);
    Tft.drawString("SWR",0,0,2,CYAN);
    Tft.drawFloat(minSwr,40,0,2,GREEN);
    Tft.drawFloat(maxSwr,120, 0,2,RED);
    if (!modSpan)
    {
        Tft.fillRectangle(40,210, 60,20, CYAN);
        Tft.drawString("freq",40, 210 ,2,BLUE);
        Tft.drawString("span",210, 210 ,2,BLUE);
    }
    else
    {
        Tft.fillRectangle(210,210, 50,20, CYAN);
        Tft.drawString("freq",40, 210 ,2,BLUE);
        Tft.drawString("span",210, 210 ,2,BLUE);
    }
}
void printSwr()
{
    for (int k = 0;k < SWR_STEP; k++)
    {
        int spacer=320/SWR_STEP;
        Tft.drawLine(k*spacer,SWR[k],(k+1)*spacer,SWR[k+1],WHITE); //plot vswr
        //Tft.drawLine(k*spacer,PWR[k],(k+1)*spacer,PWR[k+1],GREEN); //plot power
    }
}
void showCursor(int x0, int y0)
{
    Tft.fillRectangle(x0,y0, 50,8, BRIGHT_RED);
}
void draw(void)
{
    Tft.fillRectangle(0, 0, 320, 240, BLACK);
    creaGrid();
    printSwr();
    if (doubleClicked == 1)
    {
        switch (modSpan)
        {
            case 0 :
            {
                if (posInput <3) posInput = 3; showCursor(130,235);
                break;
            }
            case 1 :
            {
                posInput = 6;
                showCursor(260,235);
                break;
            }
            default: break;
        }
    }
}
void setup(void)
{
    Tft.TFTinit(); // init TFT library
    Tft.fillRectangle(0, 0, 320, 240, BLACK);
    analogReference(DEFAULT);
    // initialize serial communication at 9600 bits per second:
    Serial.begin(9600);
    //rotory interrupt
    PCICR |= (1 << PCIE2);
    PCMSK2 |= (1 << PCINT18) | (1 << PCINT19);
    sei();
    //set up the click on the encoder
    button.attachDoubleClick(doubleclick);
    button.attachClick(singleclick);
    eeprom_read_block((void*)&settings, (void*)0, sizeof(settings));
    if (settings.freqCenter <= 0)
    {
        settings.freqCenter = 7000000.0;
    }
    settings.spanIdx = 8;
    //settings.freqCenter = 7000000.0;
    AD9850.reset(); //reset module
    delay(200);
    AD9850.powerDown(); //set signal output to LOW
    AD9850.set_frequency(0,0,settings.freqCenter);
}
void calcParameters(int k, float stepSpan)
{
    float freq;
    float tempSwr;
    //float tempPwr;
    freq = settings.freqCenter + (k-SWR_STEP/2)* stepSpan;
    if (freq <= 0) freq = 1000000.0;
    AD9850.set_frequency(freq);
    delay(1);
    Docalcswr();
    Swr = max(1.00,Swr);
    //Pwr= max(1.00,Pwr);
    //tempPwr= min (600, Pwr);
    //Serial.print("temppwr:");
    //Serial.println(tempPwr);
    minSwr = min(minSwr,Swr);
    maxSwr = max(maxSwr,Swr);
    tempSwr = min (3.0, Swr);
    SWR[k] = 30+(164 - round(82*(tempSwr - 1))); //MAX SWR = 3.0 164+fontHeigth
    //PWR[k] = 30+(164 - round(164*((tempPwr*tempPwr)/360000))); //Pwr;
}
uint8_t update_graph(void)
{
    Tft.fillRectangle(250, 0, 70, 20, BLUE);
    Tft.drawNumber(next_state_sweep,250,0,2,CYAN);
    if ( next_state_sweep < SWR_STEP)
    {
        if(next_state_sweep == 0)
        {
            minSwr = 10.00;
            maxSwr = 1.00;
        }
        float s = spanValue[settings.spanIdx]/SWR_STEP;
        calcParameters(next_state_sweep,s);
        next_state_sweep++;
        return 0;
    }
    else
    {
        next_state_sweep = 0;
        return 1;
    }
}
float updateFreq(double r, float v)
{
    float step = round(pow(10,posInput));
    if (r == DIR_NONE )
    {
        // do nothing
    }
    else if ((r == DIR_CW) && (v + spanValue[settings.spanIdx]/2 < 54000000.0))
    {
        v = v + step;
    }
    else if ((r == DIR_CCW) && (v >= step + 1000000.0))
    {
        v = v - step;
    }
    return v;
}
void updateSpan(double r)
{
    if (r == DIR_NONE )
    {
        // do nothing
    }
    else if (r == DIR_CW)
    {
        settings.spanIdx++;
    }
    else if (r == DIR_CCW)
    {
        settings.spanIdx--;
        if (settings.spanIdx < 0) settings.spanIdx = totSpan -1;
    }
    settings.spanIdx = settings.spanIdx % totSpan;
}
void routine(void)
{
    if ( update_graph() != 0 | menu_redraw_required != 0)
    {
        draw();
    }
    menu_redraw_required = 0; // menu updated, reset redraw flag
}
void loop()
{
    // keep watching the push button:
    button.tick();
    routine();
}
ISR(PCINT2_vect) {
    //Serial.println("interrupt");
    unsigned char result = r.process();
    if (doubleClicked)
    {
        if(modSpan){
            updateSpan(result);
        }
        else
        {
            settings.freqCenter = updateFreq(result, settings.freqCenter);
        }
    }
    else modSpan = !modSpan;
    menu_redraw_required = 1;
}
void singleclick()
{
    //change position in field
    //Serial.println("Single");
    if (doubleClicked)
    {
        posInput++;
        posInput = posInput % 7;
    }
    menu_redraw_required = 1;
}
void doubleclick()
{
    //change field
    //Serial.println("double");
    doubleClicked = !doubleClicked;
    if (!doubleClicked) eeprom_write_block((const void*)&settings, (void*)0, sizeof(settings));;
    menu_redraw_required = 1;
}

Simple schematic for analyser with encoder

Here is a simple attempt to draw a schematic in eagle cad. If some one can help out with a nicer one, please drop an email or comment

Schematic for the analyser with encoder

Partlist

Part	Value	Package	Description
C1	1u	C050-025X075	CAPACITOR, European symbol
C7	1u	C050-025X075	CAPACITOR, European symbol
C8	100n	C050-025X075	CAPACITOR, European symbol
C9	10n	C050-025X075	CAPACITOR, European symbol
C10	100n	C050-025X075	CAPACITOR, European symbol
C11	10n	C050-025X075	CAPACITOR, European symbol
D3	AA143	DO204-10	DIODE
D4	AA143	DO204-10	DIODE
IC2	LM358N	DIL08	OP AMP also LM158; LM258; LM2904
PROMINI3.3VOLT	PRO-MINI-2	PRO-MINI-2	Arduino Pro Mini Layout 2
R1	470	V234/12	RESISTOR, European symbol
R2	1k	V234/12	RESISTOR, European symbol
R3	100	V234/12	RESISTOR, European symbol
R4	5k	V234/12	RESISTOR, European symbol
R12	50	V234/12	RESISTOR, European symbol
R13	50	V234/12	RESISTOR, European symbol
R14	50	V234/12	RESISTOR, European symbol
R15	50	V234/12	RESISTOR, European symbol
R16	100k	V234/12	RESISTOR, European symbol
R17	5k	V234/12	RESISTOR, European symbol
R18	648	V234/12	RESISTOR, European symbol
R19	10k	V234/12	RESISTOR, European symbol
R20	100k	RDH/15	RESISTOR, European symbol
R21	5k	V234/12	RESISTOR, European symbol
R22	648	V234/12	RESISTOR, European symbol
R23	47	V234/12	RESISTOR, European symbol
SW1	EC12E_SW	ALPS_EC12E_SW	ALPS rotary Encoder EC12E series with switch
T2	2N2222	TO18	NPN TRANSISTOR
T3	2N2222	TO18	NPN TRANSISTOR
U$2	2.2_TFT_LCD	2.2_TFT_LCD
U1	AD9850 DDS Module	DDS_AD9850	AD9850 DDS Module
X2	BNC	AMP_227161	JACK, RIGHT ANGLE, 50 OHM, PCB, BNC

References

[1] http://www.hamstack.com/hs_projects/k6bez_antenna_analyzer.pdf

[2] http://iphone-atom1945.blogspot.com/2013/08/antenna-analyzer-arduino-uno-dds-ad8307.html

[3] http://www.zl2pd.com/digitalZmeter.html

[4] https://github.com/devzendo/antenna-analyser-c

Learn on the fly

Pages

Sunday, April 12, 2015

Quick and dirty way to measure inductance and capacitance with an arduino uno or any other micros

Thursday, April 2, 2015

A simple standalone antenna analyzer based on arduino and ad9850 with ili9341tft
